This feature streamlines the process of exporting individual components from complex assemblies, allowing users to save time and enhance overall workflow efficiency.
The Batch Tool includes an option to export each part in a model as a separate file. With a single command, users can automatically generate individual files for every part within an assembly or project, eliminating the need for repetitive manual export steps.

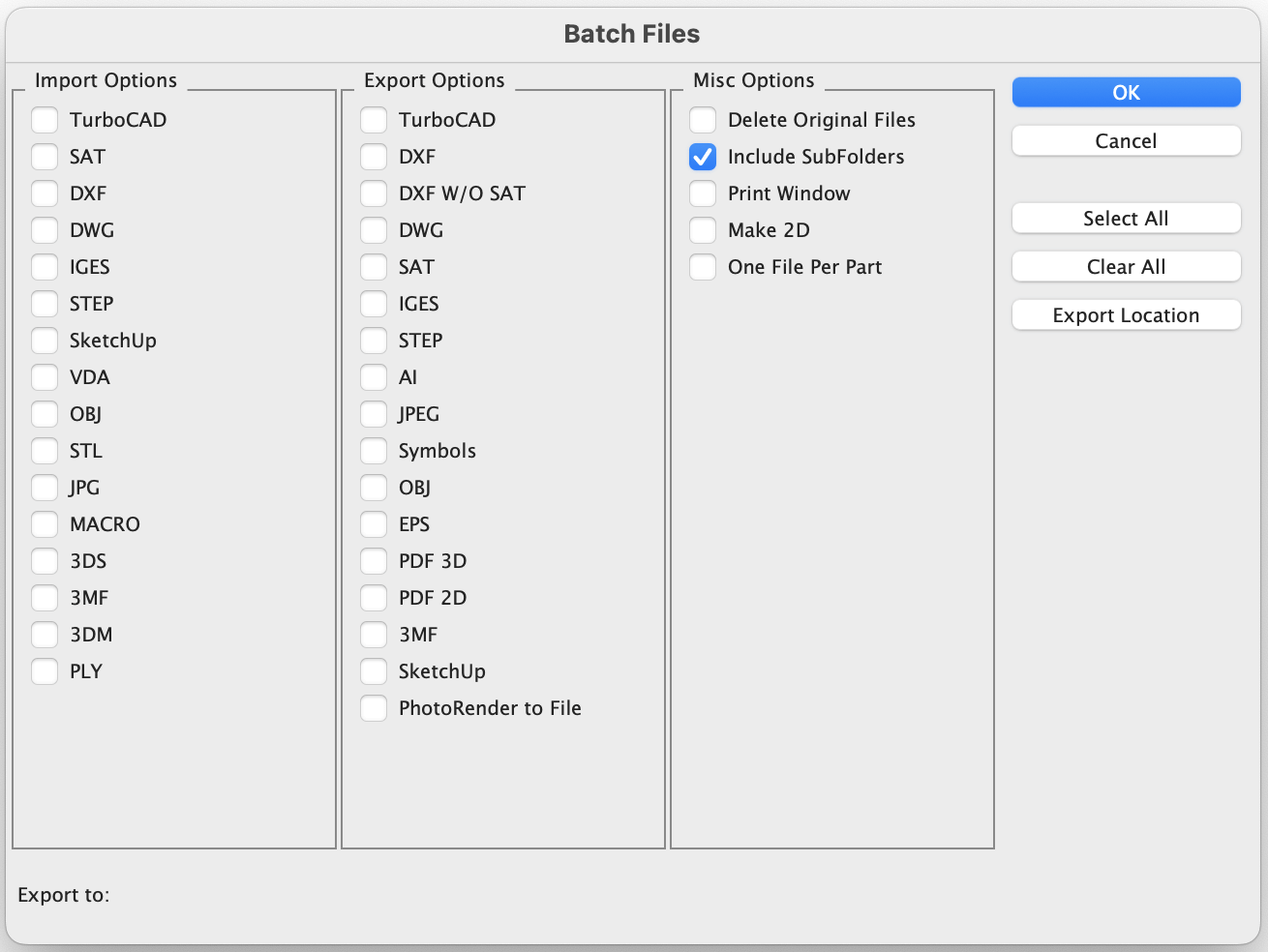

Go to the File menu and click on Batch. It will open the Batch Files window.
Batch Files window

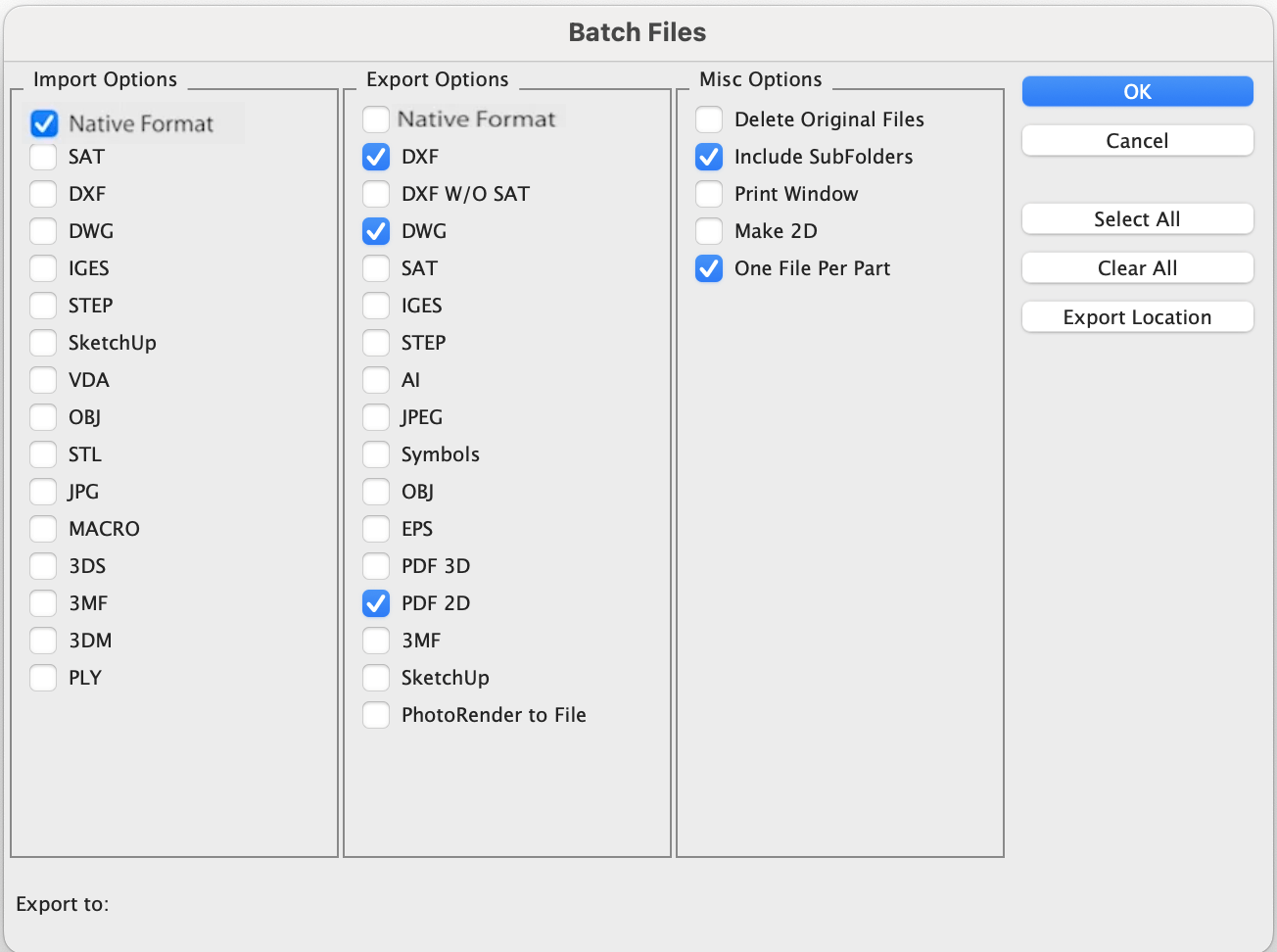

Select the desired import file format to open, then choose the appropriate export options for the output format. Ensure that the One File Per Part option is enabled to export each part as an individual file. In the screenshot Native Format is selected for Import and DXF/DWG/PDF formats are selected for Export options.
Selection of Import/Export and Misc Options

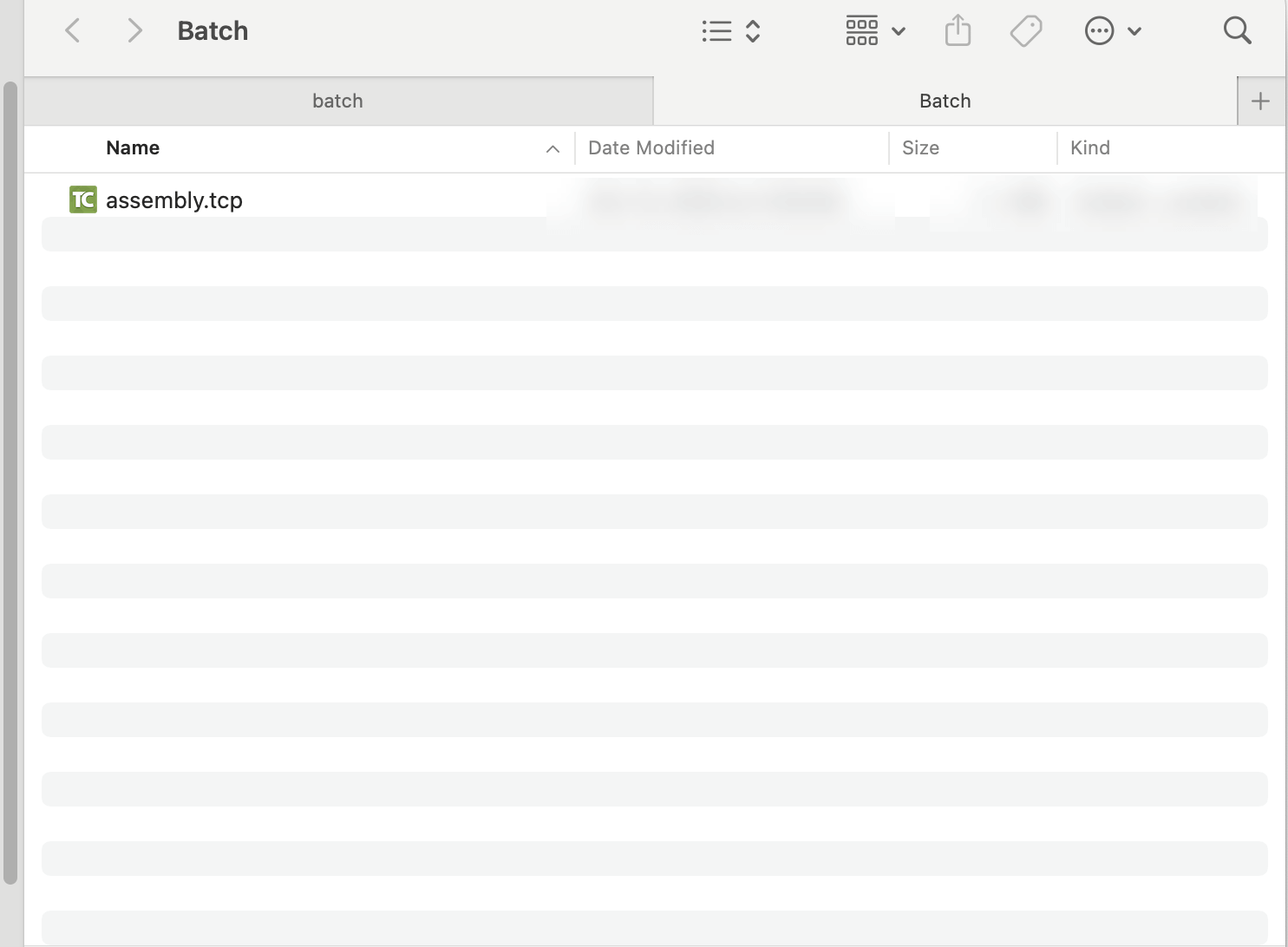

A folder will open displaying the location of the desired import file. Select the file to proceed.
Import file selection window

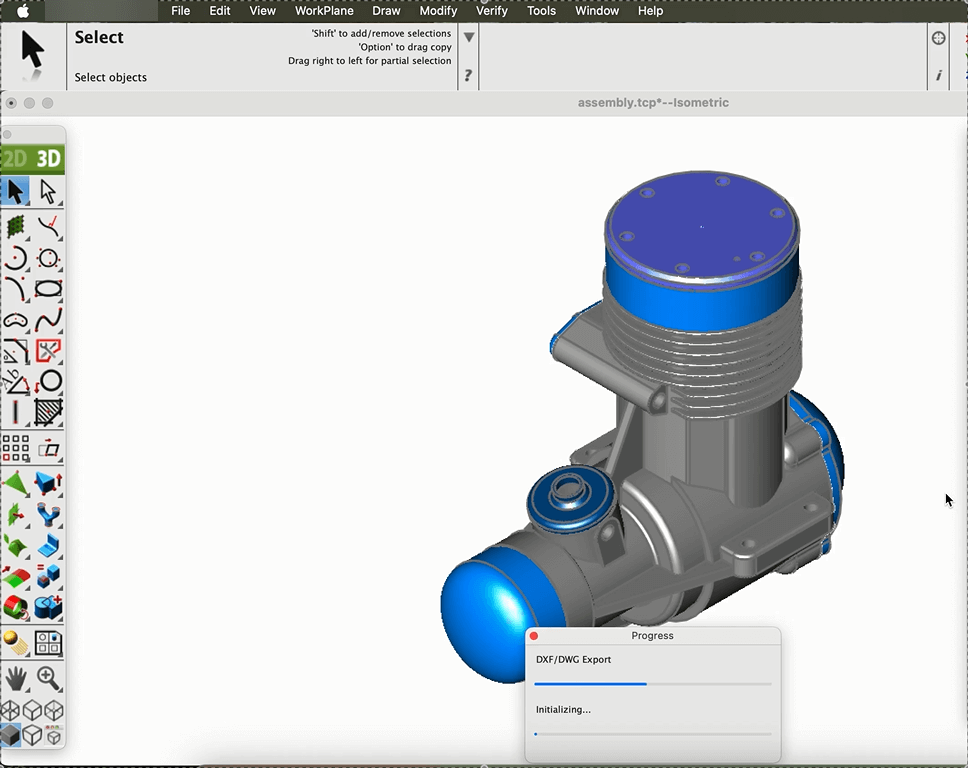

The application will now process the selected file and export it into the chosen format, creating one file per part.
Process of exporting files

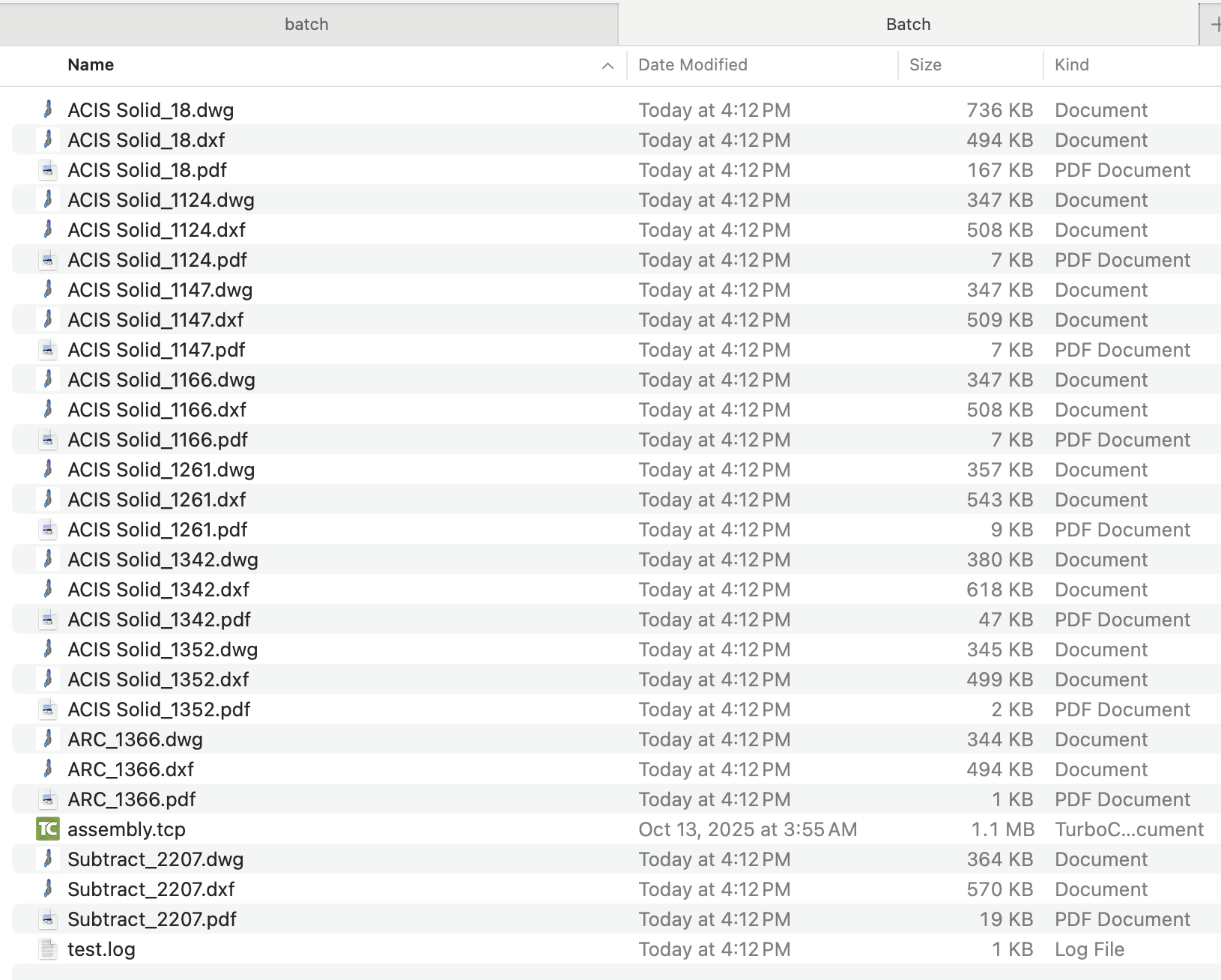

The files are exported to the selected location.
Exported files appear in the selected location
The Export One File Per Part provides a faster, more efficient way to manage and share parts from complex assemblies. By automating the export process, it reduces manual effort and streamlines workflows, helping users focus more on design and less on file management.
